Machine Name : Capsule Endoscope Assembly Machine
| Machine size: | Length: 200cm * Width: 160cm * Height: 170cm |
| Number of control axes: | 6 axes |
| Robotic arm: | 6 axes 2 sets |
| Control System: | PLC |
| Camera: | None |
| Detection accuracy: | 0.01mm |
| Production efficiency: | 400 groups / hour |
| Features: | Capsule endoscope assembly; height check;
Ultrasonic welding |
| Application: | Lens assembly |
| Features: | Fully automatic assembly test completed |
Machine Name: Robotic Arm Application
Function Description:
| Machine size: | Length: 140cm * Width: 130cm * Height: 170cm |
| Machine size: | 4 axes |
| Robotic arm: | none |
| Control System: | PLC |
| Camera: | 5 megapixels*1 |
| Detection accuracy: | 0.01mm |
| Production efficiency: | 900 groups / hour |
| Function: | Place Cylinder and finished product, put Tray |
| Application products: | injection molding; metal buried incident |
| Features: | 2 people per shift |

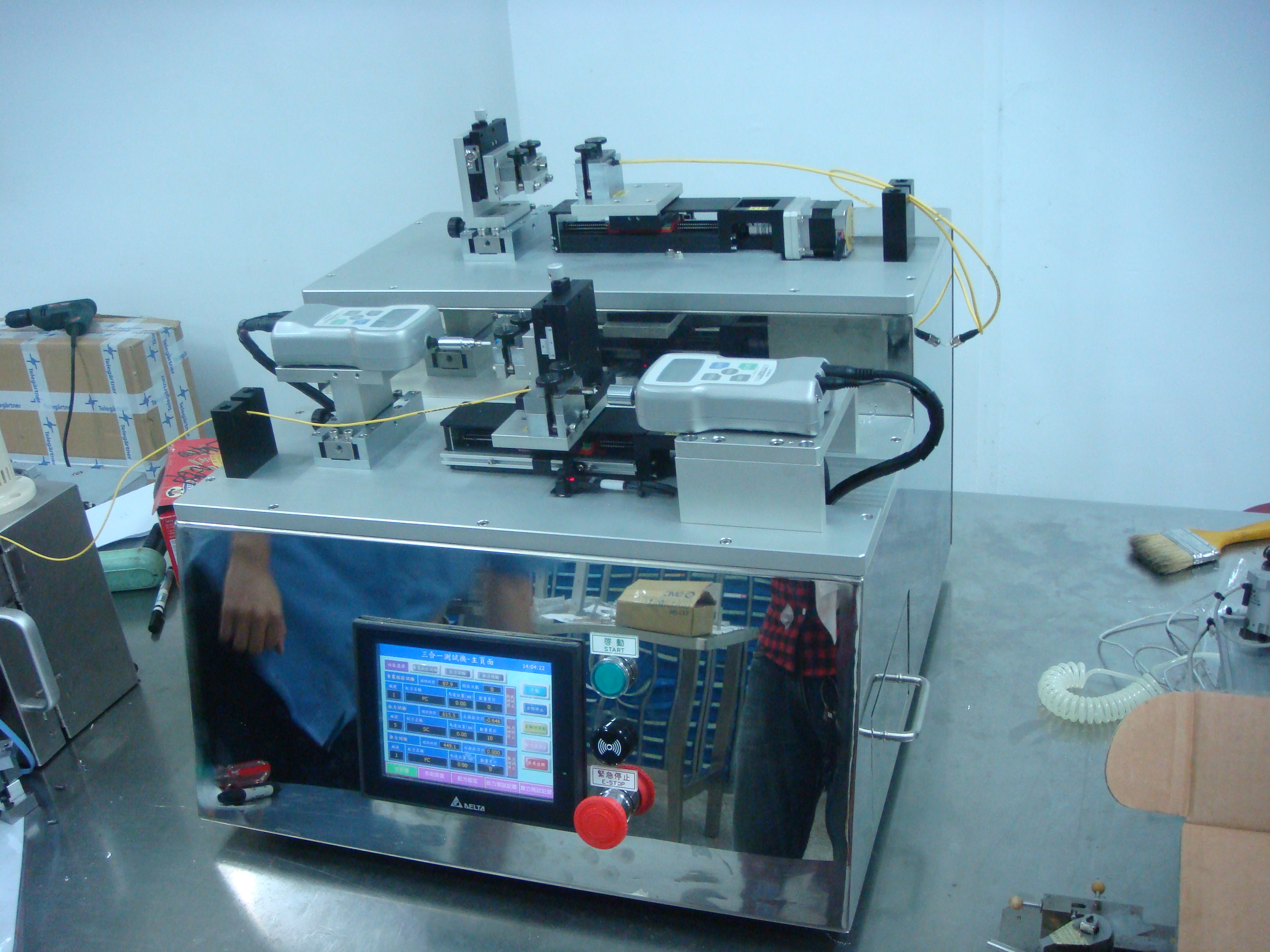

Machine Name: 3 in 1 Fiber Connector Life Tester
Function Description:
| Machine size: | Length: 60cm * Width: 45cm * Height: 30cm |
| Number of control axes: | 2 axes |
| Robotic arm: | none |
| Control System: | PLC |
| Camera: | None |
| Detection accuracy: | 0.01kg |
| Production efficiency: | |
| Features: | Fiber optic connector test; tensile test; insertion force test;
Plug and pull test; retention and stress testing. |
| Application: | Fiber optic cable |
| Features: | Chunghwa Telecom passed the certification |

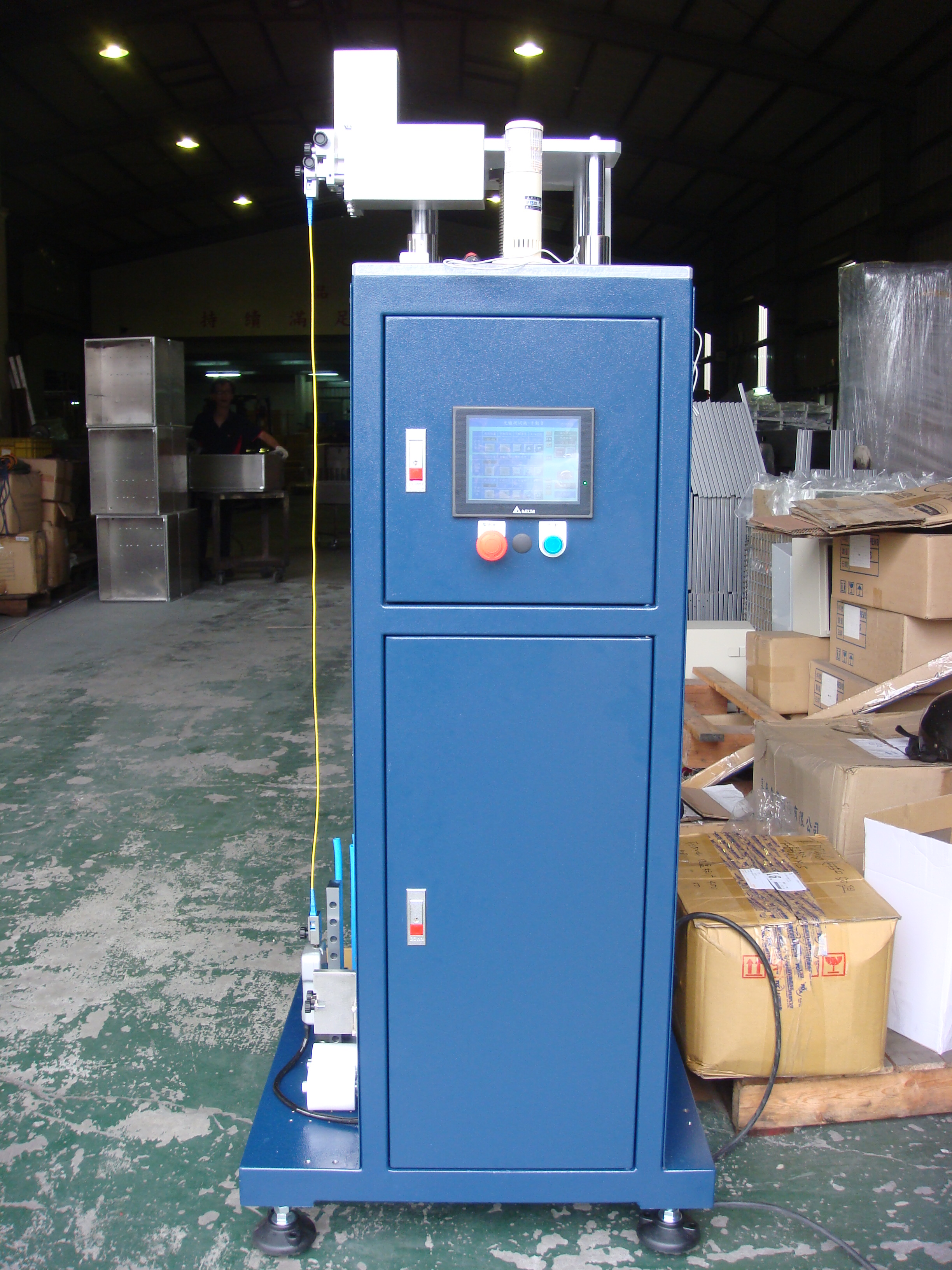

Machine Name: 4 in 1 Fiber Connector Tester
Function Description:
| Machine size: | Length: 60cm * Width: 60cm * Height: 180cm |
| Number of control axes: | 2 axes |
| Robotic arm: | none |
| Control System: | PLC |
| Camera: | None |
| Detection accuracy: | 0.01kg |
| Production efficiency: | |
| Function: | Fiber bending test; Tensile test; Insertion test; Torsion test |
| Application: | Fiber optic cable |
| Features: | Chunghwa Telecom passed the certification |
Machine Name: IDC Insert PIN Assembly Machine
Function Description:
| Machine size: | Length: 200cm * Width: 120cm * Height: 180cm |
| Number of control axes: | 30 axes |
| Robotic arm: | none |
| Control System: | PLC |
| Camera: | 2 million pixels * 4 |
| Assembly accuracy: | 0.02mm |
| Production efficiency: | 300 groups / hour |
| Function: | High frequency connector assembly |
| Application: | Connector |
| Features: | 塔式設計。有效減少產線空間。 |
Machine Name: Diode Test Packaging Machine
Functional Description: Automotive Semiconductor
| Machine size: | Length: 200cm * Width: 160cm * Height: 170cm |
| Number of control axes: | 4 axes |
| Robotic arm: | none |
| Control system: | PLC+PC |
| Camera: | 3 groups |
| Detection accuracy: | 0.01mm |
| Production efficiency: | 400 groups / hour |
| Features: | Sealing height inspection; conducting pin skew inspection;
Conductivity check; color identification of the model; Laser printing |
| Application products: | Automotive diodes |
| Features:: | Fully automatic inspection and testing |
Machine name: FPC fill board AOI
Function Description:
| Machine size: | Length: 120cm * Width: 80cm * Height: 170cm |
| Number of control axes: | 2 axes + indexing plate |
| Robotic arm: | none |
| Control system: | PLC+PC |
| Camera: | 2 million pixels * 1 + 5 million pixels * 1 |
| Detection accuracy: | 0.01mm |
| Production efficiency: | 1800pcs / hour |
| Function: | Aperture check; Burr check |
| Application products: | stamping parts or small electronic parts |
| Features: | Switching models only need to change the feeding mechanism, and the machine has high durability. |
Machine Name: Hemodialysis Tube AOI
Function description: Connect the molding machine to achieve online inspection.
| Machine size: | Length: 140cm * Width: 130cm * Height: 170cm |
| Number of control axes: | 4 axes |
| Robotic arm: | none |
| Control system: | PLC + PC |
| Camera: | 2 million pixels * 4 |
| Detection accuracy: | +/- 0.02 |
| Production efficiency: | 900 groups / hour |
| Function: | Transparent tube outer tube inspection |
| Uses: | Dialysis tube inspection black spots; foreign bodies |
| Features: | Bonding machine to achieve online inspection |
Machine Name: Multi-axis automatic dispenser (Damper)
Function Description:
| Machine size: | Length: 120cm * Width: 120cm * Height: 160cm |
| Number of control axes: | 4 axes |
| Robotic arm: | none |
| Control System: | PLC |
| Camera: | None |
| Dispensing accuracy: | 0.10mm |
| Production efficiency: | 900 groups / hour |
| Function: | HDD component dispensing |
| Application products: | Various dispensing processes |
| Features: | One-time multi-point dispensing to increase production efficiency |
Machine Name: Multi-axis automatic dispenser
Function description: coil dispensing
| Machine size: | Length: 50cm * Width: 500cm * Height: 70cm |
| Number of control axes: | 4 axes |
| Robotic arm: | none |
| Control System: | PLC |
| Camera: | None |
| Assembly accuracy: | 0.02mm |
| Production efficiency: | 720 groups / hour |
| Function: | VCM coil dispensing |
| Application products: | Dispensing process |
| Features: | You can point 4 holes at the same time. |
