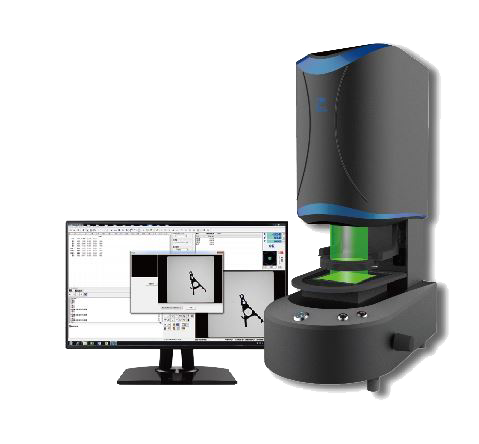

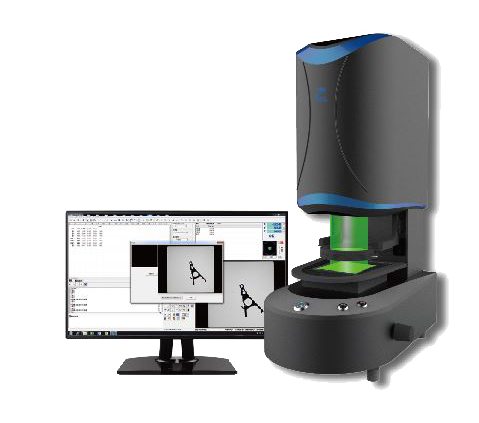

Instant inspection machine QCM8080
Characteristic
Fast, no need to locate, complete the size check in an instant
Flexible, all stations in the factory can be used
Simple 1. Place it casually 2. Press the measurement button
Features
Large depth of field telecentric lens
Telecentric lens for near-zero distortion with high-precision measurement
The focal length of the large depth of field is clearly applicable to the measurement with high and low step
Variable lighting system
Telecentric backlight: Provides parallel backlight with high contrast between light and dark for high precision and high stability measurement.
Diffusion ring light: a variety of height + multi-angle positive lighting, improve the applicability of the product with step.
Coaxial light: enhances surface features and enhances the suitability of flat product measurements.
Complete measurement report
All measurement results are automatically stored in the local hard drive, and the measurement results can be output to a CSV file format.
Make an independent report.
Easy boot programming, two steps to complete measurement setup
- Product outline setting 2. Measurement item setting
Application examples in various fields
Sheet metal parts/metal parts/casting/injection molding
| Model | QCM8080 |
| Camera | 12M CCD |
| Display | 10.4 inch LCD display
(XGA: 1024×768) |
| Lens | Double telecentric lens |
| Measuring field of view | 82x82mm |
| Depth of field | 20mm |
| Measurement accuracy | 0.01mm |
| Repeatability | ±0.01mm(telecentric backlight) |
| Lighting system | Diffusion ring light (standard) |
| Telecentric backlight (standard) | |
| Coaxial light (optional) | |
| Working environment temperature | +10~35℃ |
| Working environment humidity | 20~80%RH (no condensation) |
| Power supply | 100~240 VAC 50/60 Hz |
| Dimensions | 414x520x700mm |
